Granite Peak Tight-Cut - Corners - Versetta Stone - 36" x 8" x 2" - 4 sq ft / box

Granite Peak Tight-Cut - Corners - Versetta Stone - 36" x 8" x 2" - 4 sq ft / box

$92.84

Granite Peak Tight-Cut - Corners - Versetta Stone - 36" x 8" x 2" - 4 sq ft / box

$92.84
Granite Peak Tight-Cut - Corners - Versetta Stone - 36
Granite Peak Tight-Cut - Corners - Versetta Stone - 36" x 8" x 2" - 4 sq ft / box

Granite Peak Tight-Cut - Corners - Versetta Stone - 36" x 8" x 2" - 4 sq ft / box

$92.84

SKU: 9020978

0 LEFT IN STOCK
0 have this item in their cart.
Product Description:

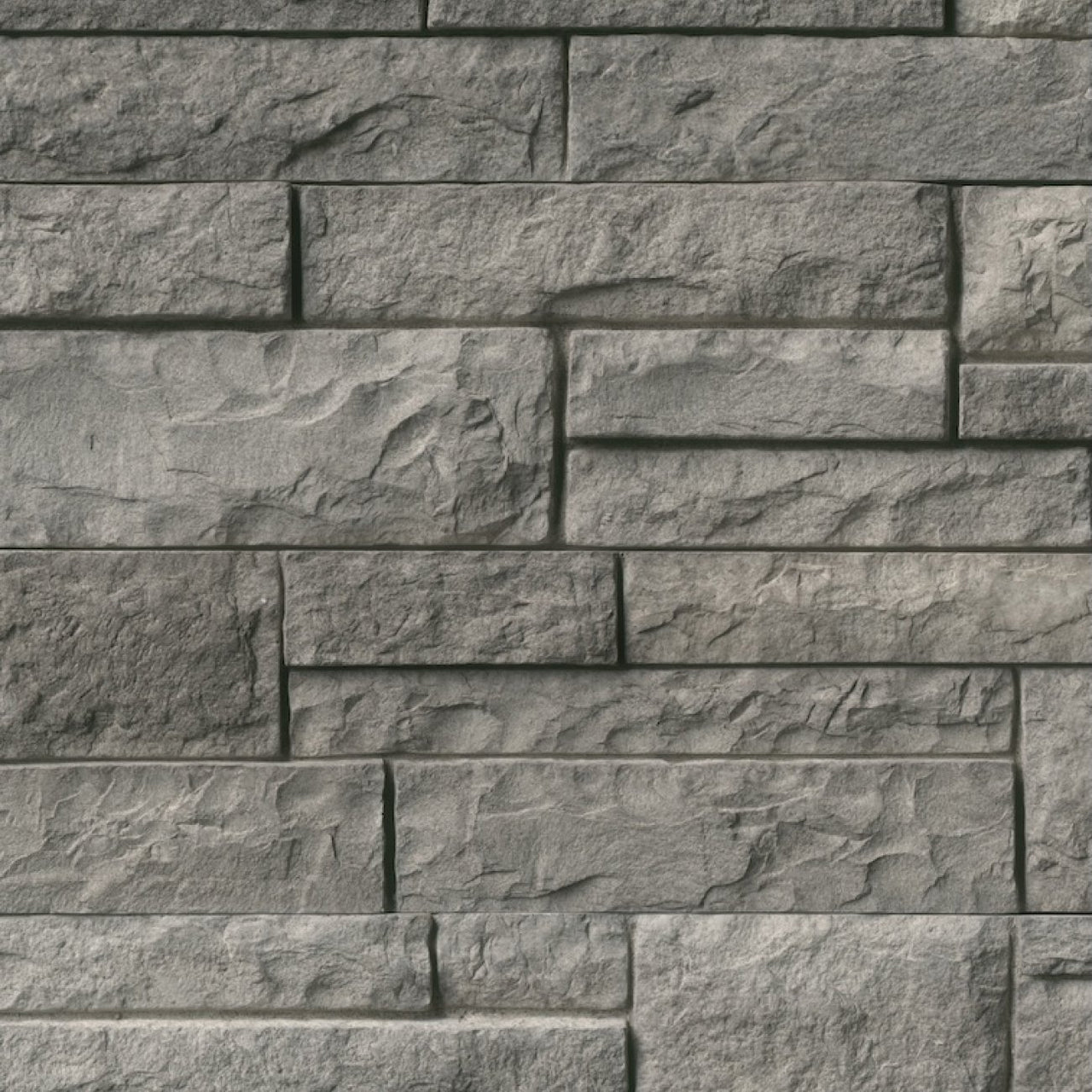

Tight-Cut Versetta Stone siding displays the traditional look of quarried limestone fitted tightly together to create the look of 19th century architecture. The panels display square and rectangular stones with a variation of texture and colour to create the illusion of natural stone. Versetta stone siding Tight-cut showcases the beauty of traditional stone with the simplicity of siding.
Style: Tight-Cut
Colour: Granite Peak
Texture: Rough, rugged, traditional
Height: 8"
Width: 36"
Thickness: Up to 2"
Weight: 10 lbs / sq ft
Box Quantity: 4 sq ft / 2.66 Ln Ft
Installation: Screw on panels
Application: Vertical surfaces only. Not suitable for floor applications.
Before You Start: Versetta Stone requires a minimum 7⁄16" OSB or 1/2" plywood sheathing behind the Versetta Stone product. Wall framing should be designed to limit out-of-plane wall deflection to a minimum of L/240. Walls are to be plumb within 1/4" per 10 lineal feet. Installations above 30' must be approved by the design professional.
Estimating Materials: 1. Determine the net wall area to be covered. Do this by multiplying the wall width (in feet) by the wall height (in feet). Subtract the area of windows, doors or any other area that will not be covered. This is your net wall area.
2. Universal Corners (UC) are used to finish outside corners, inside corners or to provide an attractive end of wall
termination. Each end of the Universal Corner will provide 8" of height coverage for a total of 16" per panel (8" x 2 ends).
Multiply the total height (in feet) of total wall terminations by 0.75 to calculate the number of Universal Corners panels needed. Don’t forget to add a few for scrap. Important Note: Each Universal Corner Panel will provide one left and one right after cutting the panel into two pieces.
3. In addition, using an entire Universal Corner Panel provides 2 square feet of wall area coverage. This coverage will be subtracted from the Total Wall Area to determine the number of Flat Panels needed.
Formulas: Net Wall Area = width x height (in feet)
Number of Universal Corners = Corner Height (in feet) x 0.75
Universal Corner Coverage = # of Universal Corners x 2
Flat Panel Area = Net Wall Area – Universal Corner
Coverage Number of Flat Panels = Flat Panel Area ÷ 2 A factor for scrap should be included, and it is suggested you start with 5–10% Universal Corners.
ƒ - Fastener Quantity = 4 per panels 18" to 36" long
ƒ - Starter Strip Quantity = Base perimeter of the wall rounded up to 10'
ƒ - J Channel Quantity = Measure the perimeter of window and door openings, trim material transitions,cladding transitions and any control joints.
Actual colours may vary. We do our best to ensure that our photos are as true to colour as possible. However, due to photographic lighting sources, inconsistencies of various monitors settings, we cannot guarantee that the colour you see accurately portrays the true colour of the product.
